How to Choose the Right Cable Gauge for Zipline: Clear Guide 2026

Building a thrilling backyard ride or a commercial canopy tour requires strict attention to physics, tension, and material strength. The most critical component of your entire setup is the wire rope itself, specifically its thickness and construction. If you use an undersized aircraft cable, the dynamic tension of a heavy rider could lead to catastrophic failure. To choose the correct zipline cable gauge, use 1/4-inch cable for short runs under 200 feet, 5/16-inch cable for standard backyard setups up to 500 feet, and 3/8-inch cable for heavy-duty or commercial runs up to 1,000 feet. Always use 7×19 galvanized steel aircraft cable to ensure maximum flexibility and breaking strength. Getting this right ensures your structural integrity, sag allowance, and long-term durability are perfectly dialed in.

How to Choose the Right Cable Gauge for Zipline

When you are figuring out how to choose the right cable gauge for zipline installations, you are balancing multiple physical forces. You are not just hanging a static weight on a string; you are dealing with dynamic tension, kinetic energy, and environmental wear. The longer your span, the heavier the wire itself becomes, which adds to the overall load on your anchor points.

You also must account for the catenary curve, which is the natural sag of a suspended cable. A thicker gauge provides a higher Minimum Breaking Strength (MBS), allowing for less extreme sag without threatening the wire’s integrity. To select the perfect size, you must accurately measure the distance between your mounting points and estimate your heaviest potential rider. Never compromise on thickness to save a few dollars; an oversized cable is infinitely safer than an undersized one.

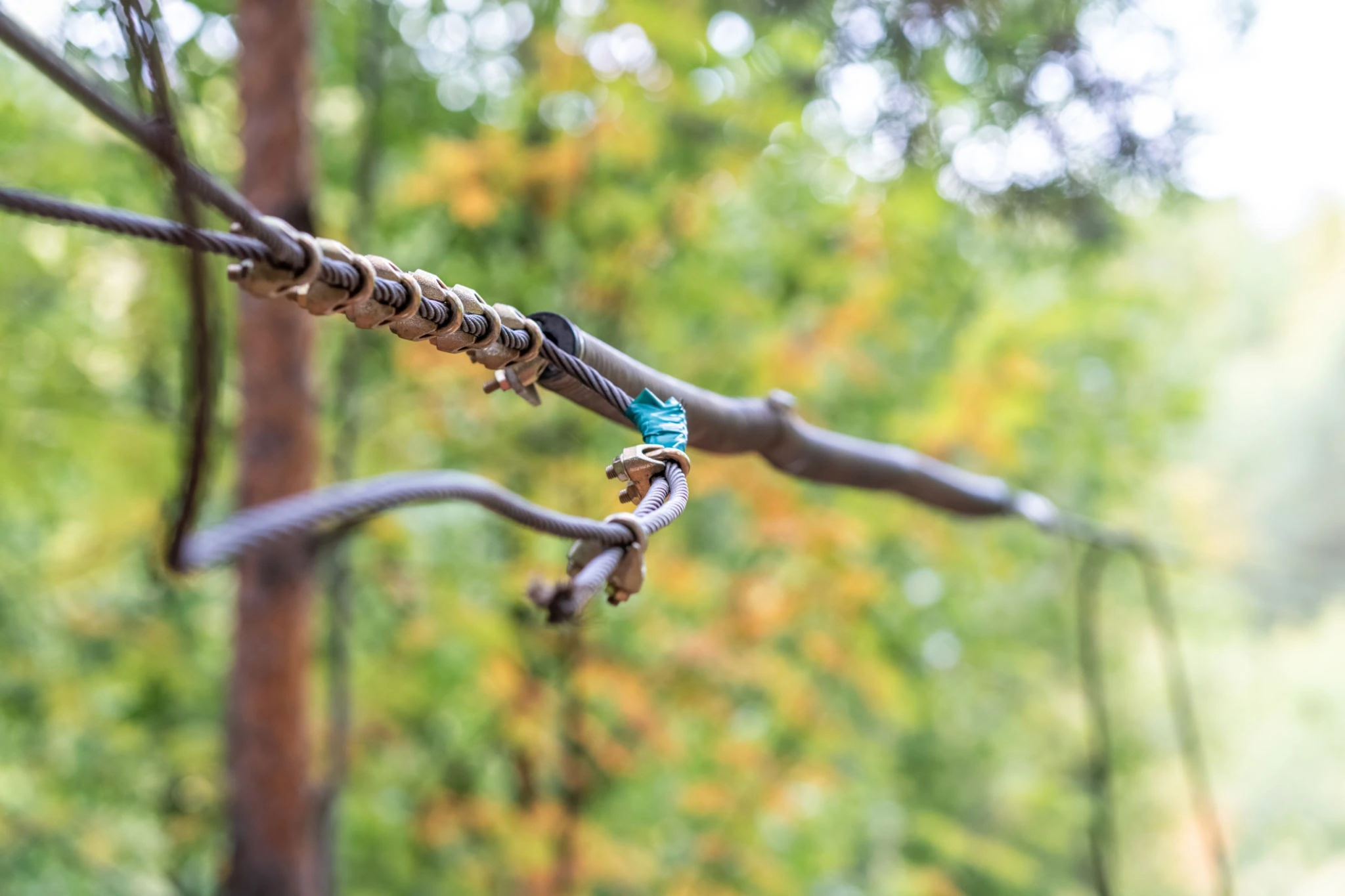

Understanding Wire Rope Construction: Why 7×19 is Standard

Not all steel cables are created equal, even if they share the same diameter. Wire rope is categorized by its internal construction, referring to how many strands are twisted together and how many individual wires make up each strand. For ziplines, 7×19 construction is the universal industry standard.

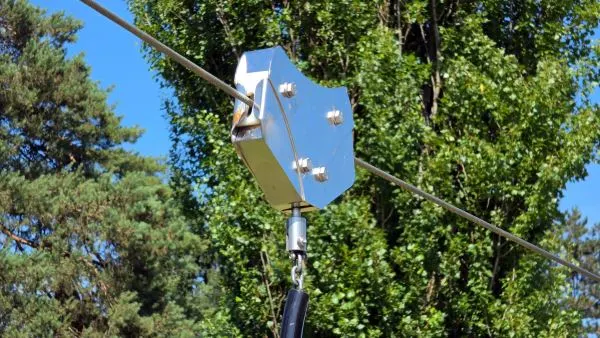

This means the rope is made of 7 distinct strands, and each of those strands contains 19 individual wires. This specific weave provides the perfect balance between high tensile strength and vital flexibility. Flexibility is crucial because the cable must smoothly bend around thimbles at your anchor points and accommodate the constant rolling of a trolley pulley.

Avoid 1×19 construction, which is incredibly stiff and prone to snapping when bent around tight radii. Similarly, 7×7 construction is acceptable for very light loads but lacks the smooth exterior and flexibility required for a high-quality riding experience. Stick exclusively to 7×19 aircraft-grade cable for your project.

Zipline Cable Size Chart: Distances and Weight Limits

Your exact span distance dictates the gauge you must purchase. As the distance increases, the inherent weight of the steel wire adds massive tension to the anchor points. Here is a breakdown of the exact gauges required for various setups.

When to Use 1/4-Inch Cable (Short Distances)

A 1/4-inch cable is the entry-level standard for small, residential backyard setups. It boasts an approximate Minimum Breaking Strength (MBS) of 7,000 lbs. You should strictly limit the use of this gauge to runs that are 200 feet in length or shorter.

Maximum rider weight on a 1/4-inch line should be capped at 250 lbs. Because this cable is relatively light, it is easy to maneuver and tension by hand using basic tools. However, if you stretch it beyond 200 feet, the tension required to keep the rider off the ground will exceed safe working limits.

When to Use 5/16-Inch Cable (The Backyard Standard)

For most ambitious DIY builders, the 5/16-inch wire is the gold standard. It features a robust breaking strength of roughly 9,800 lbs. This allows you to safely span distances up to 500 feet while maintaining excellent safety margins.

The 5/16-inch gauge comfortably supports riders up to 250-300 lbs across these medium distances. It is significantly heavier than the 1/4-inch variant, meaning you will likely need a mechanical cable puller or winch to tension it properly. This is the most versatile size on the market and the best choice for 80% of residential installations.

When to Use 3/8-Inch Cable (Long and Commercial Runs)

Once you surpass 500 feet, or if you are building a commercial attraction, you must upgrade to 3/8-inch cable. This heavy-duty wire rope delivers an exceptional breaking strength of 14,400 lbs. It is designed to handle extreme dynamic tension and heavy, continuous daily traffic.

Due to its immense weight, 3/8-inch cable requires specialized rigging equipment and heavy-duty turnbuckles to install. It can span up to 1,000 feet safely, accommodating riders well over 300 lbs. For spans exceeding 1,000 feet, you step into professional engineering territory, often requiring 1/2-inch cable and custom anchor designs.

Material Selection: Galvanized Steel vs. Stainless Steel

Beyond thickness, you must select the correct alloy for your environment. Galvanized steel is carbon steel coated in a thin layer of zinc to resist rust. It is the most common choice because it is exceptionally strong and highly cost-effective.

Stainless steel (usually Grade 304 or Marine Grade 316) is highly resistant to corrosion but has slightly lower breaking strength than galvanized steel of the same diameter. Stainless steel is also significantly more expensive. You should only opt for stainless steel if you are installing the ride in a highly corrosive, humid, or coastal saltwater environment.

For 95% of inland, residential installations, standard galvanized aircraft cable is the superior and more economical choice. It will easily last a decade or more if kept clear of excessive moisture and tree sap.

The Physics of Sag and Dynamic Tension

Understanding how to choose the right cable gauge for zipline safety requires a basic grasp of dynamic physics. A zipline is never completely tight; it must have a natural droop known as a catenary curve. A standard sag allowance is 2% to 3% of the total span length when loaded.

If you try to pull a wire perfectly straight to eliminate sag, the tension multiplies exponentially. This extreme force will easily snap a 1/4-inch cable or rip the anchor tree out of the ground. Thicker gauges can handle higher resting tension, which is why long spans strictly require 3/8-inch or 1/2-inch ropes.

When a rider steps off the platform, they introduce a dynamic load. The kinetic energy of their moving weight sends shockwaves through the wire, temporarily spiking the tension at the anchor points. A properly sized cable absorbs this shock without coming anywhere near its breaking threshold.

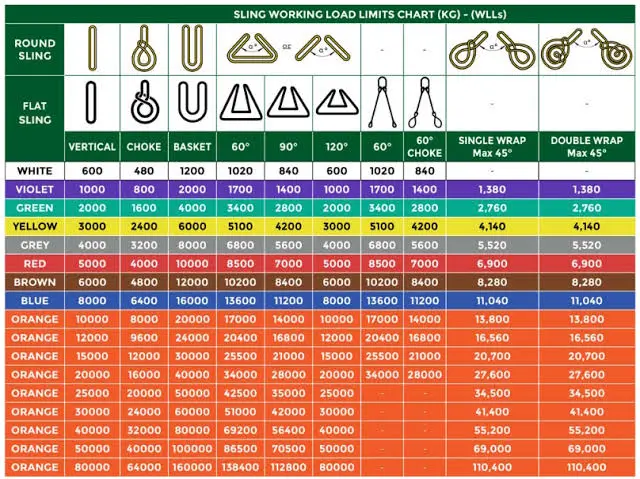

Calculating Your Safe Working Load (SWL)

In rigging and heavy lifting, we never test a material to its maximum breaking limit. Instead, we use a Safe Working Load (SWL), which applies a strict mathematical safety factor. For overhead lifting and human support, the industry standard is a 5:1 or even 10:1 safety factor.

If a 5/16-inch cable has a Minimum Breaking Strength (MBS) of 9,800 lbs, a 5:1 safety factor means you divide that number by five. Therefore, the Safe Working Load is 1,960 lbs of tension. When calculating your sag and rider weight, the total tension on the line must never exceed this 1,960 lb threshold.

This is exactly why you cannot use cheap hardware store wire for life-bearing applications. Knowing how to choose the right cable gauge for zipline design means mathematically ensuring that the highest possible load remains a fraction of the cable’s true breaking point.

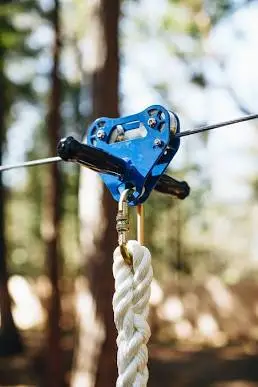

Matching Hardware to Your Cable Gauge

Your wire rope is only as strong as its weakest connection point. Every piece of hardware you purchase must precisely match the gauge of your chosen cable. If you buy a 5/16-inch wire, you absolutely must buy 5/16-inch wire rope clips and thimbles.

Never use malleable wire clips for life-support applications. You must purchase drop-forged steel clips (often called Crosby clips). Malleable iron can shatter under sudden dynamic shock, whereas drop-forged steel will bend before it breaks, offering a critical visual warning.

You will also need heavy-duty turnbuckles to dial in the final tension. For a 5/16-inch setup, a 5/8-inch jaw-to-jaw drop-forged turnbuckle is typically recommended. Always use heavy-duty steel thimbles inside the cable loops to prevent the wire from crushing itself under pressure.

Cost Analysis for Cable Selection

Budgeting for your project requires understanding market rates for high-tensile materials. Galvanized aircraft cable is generally sold by the foot, and prices scale dramatically with thickness. It is vital to measure twice and order about 10% more length than you think you need to account for tree wrapping and loops.

For standard 1/4-inch galvanized wire, you can expect to pay around ₹33/ft ($0.40/ft). Upgrading to the safer 5/16-inch standard pushes the cost to approximately ₹50/ft ($0.60/ft). If you are building a massive 500-foot run, the 5/16-inch cable alone will cost you roughly ₹25,000 ($300).

If you require 3/8-inch cable for commercial lengths, prices average ₹83/ft ($1.00/ft). A 1000-foot commercial spool will easily cost ₹83,000 ($1,000) or more. Do not cut corners on your budget here; the steel cable is the literal lifeline of your entire project.

Maintenance, Inspection, and Cable Retirement

Once your system is installed, your responsibility shifts to ongoing maintenance. Steel wire rope degrades over time due to weather exposure, friction from the trolley pulley, and constant tension. You should conduct a visual inspection of the entire span at least once a month.

Look for “meat hooks,” which are individual broken wires that stick out from the strands. If you find more than three broken wires in a single strand, or six broken wires across the entire rope within one lay length, the cable must be retired immediately. Check for heavy rust, kinking, or flattening of the wire profile.

Additionally, monitor your anchor trees. As trees grow, they expand in girth, which can swallow your slings or increase the tension on the wire unexpectedly. Always loosen your turnbuckles slightly during cold winters, as freezing temperatures cause steel to contract and tension to spike.

Frequently Asked Questions (FAQ)

Conclusion

Building an aerial runway is a highly rewarding project that provides years of outdoor entertainment. However, gravity is unforgiving, and the physics of dynamic tension demand absolute respect. Choosing between a 1/4-inch, 5/16-inch, or 3/8-inch cable is not a matter of preference; it is a strict mathematical decision based on your span distance and weight requirements.

Always opt for 7×19 galvanized aircraft cable for its superior blend of strength and flexibility. Ensure every forged clip, thimble, and turnbuckle is perfectly sized to match your wire gauge. By over-engineering your setup and respecting Safe Working Loads, you guarantee that every ride is as safe as it is thrilling.
